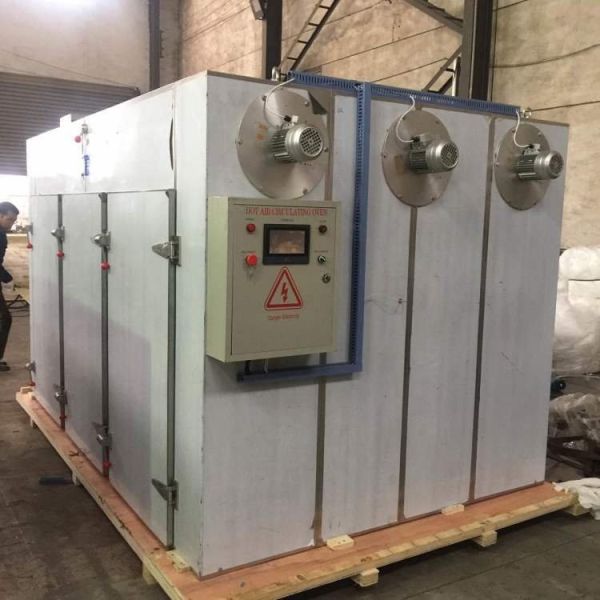

Fruit Hot Air Circulation Oven 60kg/batch Banana Drying Machine
►Description
CT-C series hot air circulation oven is equipped with low noise and high temperature axial flow fan and automatic temperature control system. The whole circulation system is completely enclosed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to the current 35-45%. The thermal efficiency can reach 50%.
It is a general-purpose drying equipment with wide adaptability. It is suitable for heat curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, light industry and heavy industry. Such as: raw materials, raw drugs, Chinese medicine decoction pieces, powder, granules, granules, large and small pill bottles, pigments, dyes, dehydrated vegetables, dried melons, sausages, plastic resins, electrical appliances, baking varnish and so on.
►Features
1. The whole box adopts a fully enclosed structure and circulates inside the hot air box.
2. The use of built-in high temperature circulation fan, greatly reducing heat loss, enhanced heat transfer.
3. There is an adjustable air distribution plate inside the box, which can adjust the opening degree up and down, so that the temperature inside and below the box is even.
4. The insulation layer thickness 80-120mm, the material is ultra-fine glass wool, in line with GMP standards, heat loss is small.
5. Baking oven baking tray is the industry's unified standard, baking tray network disk is suitable for many industries.
6. Automatic constant temperature control, working time timing, mechanized production, batch product quality is stable.
7. The whole machine has low noise, balanced operation, temperature control, and convenient installation and maintenance.
8. Heating heat source has steam, electricity, far infrared, electric steam for users to choose
►Technical parameter
| Model | Capacity(kg/batch) | Power(kw) | Tray | Cart | Dimension(mm) |
| CT-C-O | 60kg | 9 | 24 | 1 | 2200*1200*1960 |
| CT-C-I | 120kg | 15 | 48 | 2 | 2300*1200*2000 |
| CT-C-II | 240kg | 30 | 96 | 4 | 2300*2200*2000 |
| CT-C-III | 360kg | 45 | 144 | 6 | 3300*2200*2000 |
| CT-C-IV | 480kg | 60 | 192 | 8 | 4460*2200*2290 |
